Proper tennis court lighting delivers multiple benefits:
Extended playing hours: Courts can be used after sunset, increasing revenue potential for clubs and maximizing community access .
Enhanced player performance: Good visibility allows players to track the ball accurately, judge depth properly, and react quickly—critical for competitive play .
Improved safety: Well-lit courts reduce the risk of trips, falls, and collisions .
Spectator experience: Quality lighting enables fans to enjoy matches comfortably, and for televised events, broadcast-standard illumination is essential .
Property value: Quality lighting increases the overall value of sports facilities .
The amount of light required for a tennis court depends primarily on the level of play. The International Tennis Federation (ITF) and Illuminating Engineering Society (IES) have established clear standards .
For context, a standard office environment typically requires around 500 lux. Tennis courts at the professional level demand significantly more to ensure players can track balls traveling at speeds exceeding 120 mph .
For televised matches, vertical illuminance is equally important as horizontal illuminance. Cameras require adequate light on vertical surfaces (players' faces and bodies) to produce clear images. Broadcast-standard courts typically require 750 lux or more of vertical illuminance on camera-facing planes .
Correlated Color Temperature (CCT) describes the appearance of the light—from warm yellowish to cool bluish tones.
For tennis courts, 4000K to 6000K (cool white to daylight) is generally recommended . This range:
Closely mimics natural daylight
Provides excellent contrast between the yellow ball and court surface
Enhances visibility for players and spectators
CRI measures how accurately a light source reveals colors compared to natural sunlight (scale 0-100).
For tennis facilities:
Minimum CRI 80: Acceptable for recreational and most competitive play
CRI 90 or higher: Recommended for professional tournaments and broadcast, ensuring true-to-life colors for cameras and spectators
Modern LED systems with high CRI help players distinguish the ball's color and spin more effectively.
Glare is a critical concern in tennis court lighting. Excessive glare can temporarily blind players, affecting performance and safety .
Key glare control measures include:
Proper shielding: Fixtures should have cutoff angles (typically 30°) to direct light only where needed
Glare Rating (GR): Should be ≤ 50 for player comfort per CIE 112-1994 standards
Asymmetric optics: Modern LED fixtures distribute light evenly across the court while minimizing spill and glare
The 2018 Australian Open retrofit demonstrated the importance of glare control, reducing player complaints by 40% through asymmetric LED optics .
Uniformity ratio (minimum illuminance divided by average illuminance) ensures the court has no dark spots or excessive bright areas.
Poor uniformity creates patches of shadow and bright light, making it difficult for players to track the ball consistently across the court .
The beam angle determines how light spreads from each fixture. Common beam angles for tennis court lighting include 15°, 30°, 40°, and 45° .
Proper light distribution requires:
Strategic positioning of poles and fixtures
Overlapping beams to ensure even coverage
Aiming fixtures at specific angles (often 30° toward the playing area)
Outdoor tennis courts require fixtures that can withstand rain, snow, extreme temperatures, and humidity.
Look for IP66 or IP67 rated fixtures, which offer complete protection against dust and powerful water jets or temporary immersion . Quality LED systems operate reliably in temperatures ranging from -40°C to +60°C .

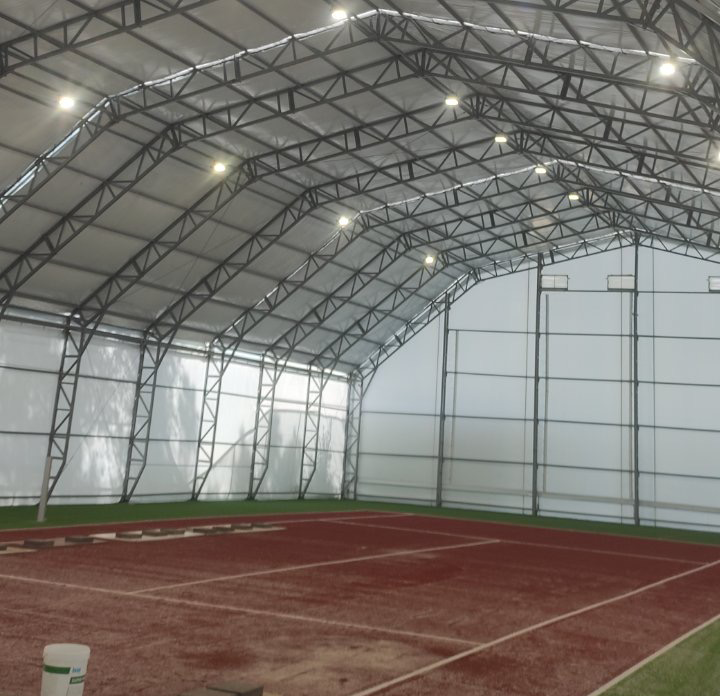

Indoor facilities present unique considerations:
Mounting options: Luminaires can be mounted on ceilings, beams, or suspension systems
Layout: Fixtures are typically arranged parallel to the sidelines and positioned outside the playing area, pivoted toward the court at approximately 30°
Ball impact safety: Luminaires must be protected against tennis ball penetration—aperture widths should be smaller than 60mm
Extended playing area: Lighting should extend approximately 3 meters beyond the baseline to cover the full playing area

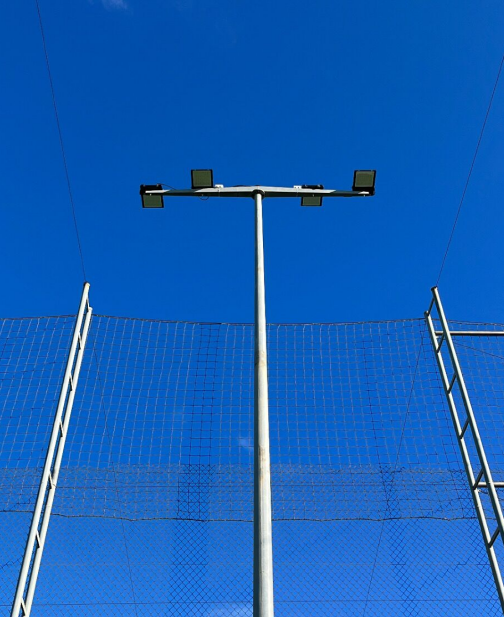

Outdoor installations require:
Pole mounting: Typical pole heights range from 6m to 12m depending on court configuration
Weatherproof construction: All components must withstand outdoor exposure
Light spill control: Minimizing light trespass onto neighboring properties and reducing sky glow
Wind load calculations: Poles and fixtures must be engineered for local wind conditions
LED lights consume significantly less energy compared to traditional metal halide or halogen systems . Real-world projects demonstrate dramatic savings:
Wrexham Tennis and Padel Centre achieved a 64% reduction in energy consumption after LED retrofitting
Tennis Club Mogliano Veneto in Italy realized energy savings of up to 91% compared to previous halogen floodlights
Quality LED sports lighting offers exceptional longevity:
This translates to 20+ years of typical operation with minimal maintenance
Reduced replacement frequency means lower long-term costs and fewer disruptions
LED technology delivers:
Excellent color rendering (CRI 80-90+)
Instant on/off with no warm-up time
Precise optical control for uniform distribution
Flicker-free operation (essential for slow-motion replay and broadcasts)
Modern LED systems can include advanced control features:
Scheduling: Automated on/off based on time of day or booking schedules
Remote control: Adjust lighting via smartphone apps from anywhere
Dimming capabilities: Reduce light levels for training vs. matches (e.g., 300 lux training, 700 lux match mode)
Monitoring: Receive alerts for outages or performance issues
The Indian Wells Tennis Garden demonstrated 35% energy savings through adaptive lighting controls .
New construction offers maximum flexibility in pole placement, electrical routing, and system design.

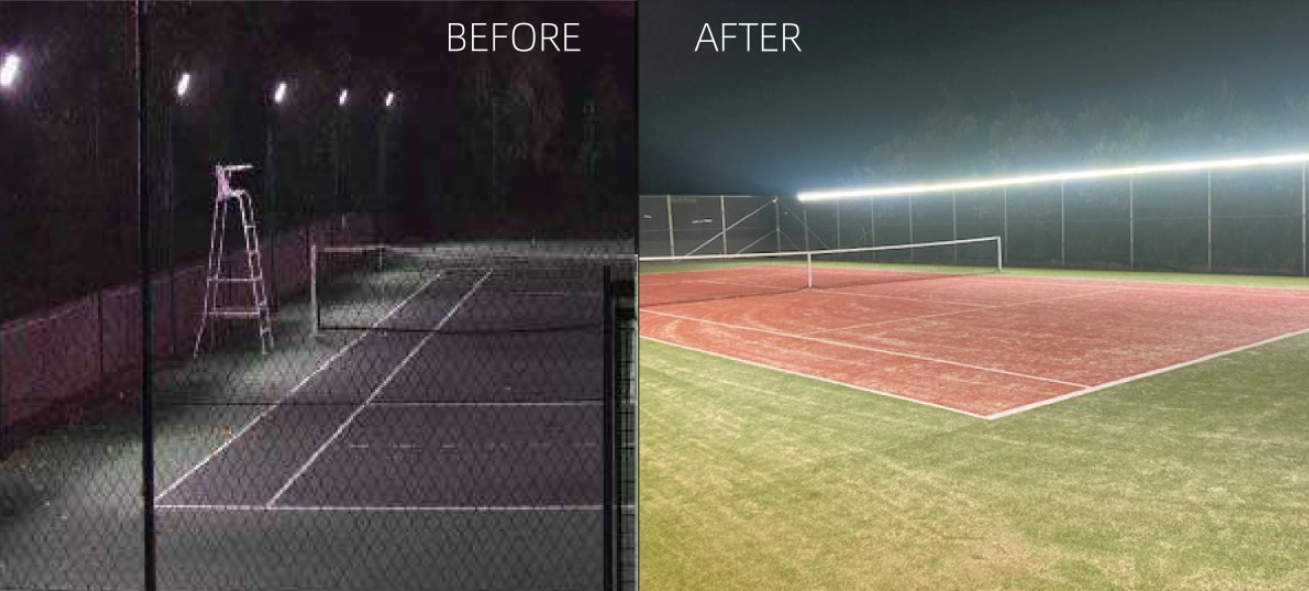

Retrofit projects replace existing fixtures while typically reusing existing poles and electrical infrastructure . Benefits include:
Lower upfront costs
Minimal disruption
Faster implementation
The Wrexham project demonstrated that LED retrofits can be completed with zero disruption to ongoing court activities .
Site assessment: Evaluate existing conditions, electrical service, and structural requirements
Design and photometric planning: Create detailed lighting plans with lux level calculations
Aiming and adjustment: Precisely aim each fixture per manufacturer specifications
Commissioning: Test the system and verify light levels meet specifications
Warranty and training: Document the installation and train facility staff
Number of courts: More courts = more fixtures and poles
Level of play: Higher lux requirements demand more or higher-output fixtures
Pole requirements: New poles add significant cost compared to pole reuse
Controls complexity: Basic on/off is most economical; smart controls add cost but deliver long-term savings
Installation complexity: Underground conduit, distance from power sources, and site conditions affect labor costs
While LED systems have higher upfront costs than traditional lighting, the total cost of ownership is substantially lower due to:
Potential utility rebates and incentives
A typical municipal project budget for court lighting installation might range from $100,000 to $500,000+ depending on scope .
For recreational/club use, 200-300 lux is sufficient. Competitive/tournament play requires 500-750 lux. Professional broadcast events need 1,000-1,500+ lux .
While some smaller projects may be suitable for experienced volunteers, professional installation is recommended for most tennis court lighting projects due to electrical requirements, pole installation complexities, and the need for precise photometric performance .
Quality LED sports lighting systems have a rated life of 80,000 to 120,000 hours, which translates to 20+ years of typical operation .
4000K to 6000K (cool white to daylight) is generally recommended, as this range provides excellent visibility and contrast .
Yes. Quality LED fixtures are designed to operate reliably in temperatures as low as -40°C . Unlike some other lighting technologies, LEDs perform well in cold conditions.
Uniformity is the ratio of minimum illuminance to average illuminance across the court. Good uniformity (≥0.5-0.7 depending on level of play) ensures no dark spots or excessive bright areas, allowing players to track the ball consistently .
Choose fixtures with precision optics and proper shielding. Work with an experienced lighting designer to ensure correct pole placement and aiming angles. Many modern LED systems are specifically engineered to minimize spill and glare .
Tennis court lighting has evolved dramatically with LED technology. Today's systems deliver exceptional energy efficiency, superior light quality, and intelligent controls that were unimaginable with traditional lighting. Whether you're building new courts or upgrading existing facilities, understanding the key parameters—lux levels, uniformity, glare control, color quality, and durability—will help you make informed decisions.
By partnering with experienced lighting professionals and selecting quality components, you can create a tennis environment that serves players well for decades while controlling energy and maintenance costs.
